PCB Assembly

Achieve Electronics Manufacturing Excellence with Corintech

ELECTRONICS MANUFACTURING

PCB Assembly Services at Corintech

At Corintech, we pride ourselves on our high quality and competitive PCB assembly services. With over 40 years of experience, our strengths lie in achieving the lowest cost possible for the highest level of quality and prompt delivery to a wide range of customers. Our services take your project from design to production and every stage in between, including PCB design, component procurement, mixed assembly and functional testing. We remain on the cutting edge of technology by continually investing in industry leading mounting tools and AOI machinery.

Our specialisms include:

  • Pick and place of surface mount components down to 01005 and uBGAs
  • Conventional through-hole soldering
  • FR4, T-clad, steel and ceramic substrates
  • Serialisation and barcoding
  • Conformal coating and encapsulation
  • ISO9001 accreditation
  • All workmanship carried out to IPC J-STD
  • All inspections carried out to IPC-A-610



We use both conventional PCB assembly (THT) and Surface Mount Technology (SMT) component placement systems, ensuring we are industry-leading through our continual investment in the latest machinery:

  • Solder Paste Printing – Europlacer SP710avi
  • SMT Pick-and-Place – Europlacer Iineo 1
  • QR coded smart reel system
  • Reflow – TSM 70-i71 8 zones (7 heating, 1 cooling)
  • Selective Soldering – Smartflow 2020
  • 3D AOI – CyberOptics SQ3000

Getting a Quote

Our process starts with the customer sending through an RFQ pack containing Gerber files, Bill of Materials and PCB Spec alongside any additional info, such as a test specification. Then, our production engineering team studies the documentation for any discrepancies before our purchasing experts quote for the PCB and components and our production planner adds lead time and labour costs. With this information, our sales team issues the quote to the customer stating price, lead time and any component alternatives.

Our Process

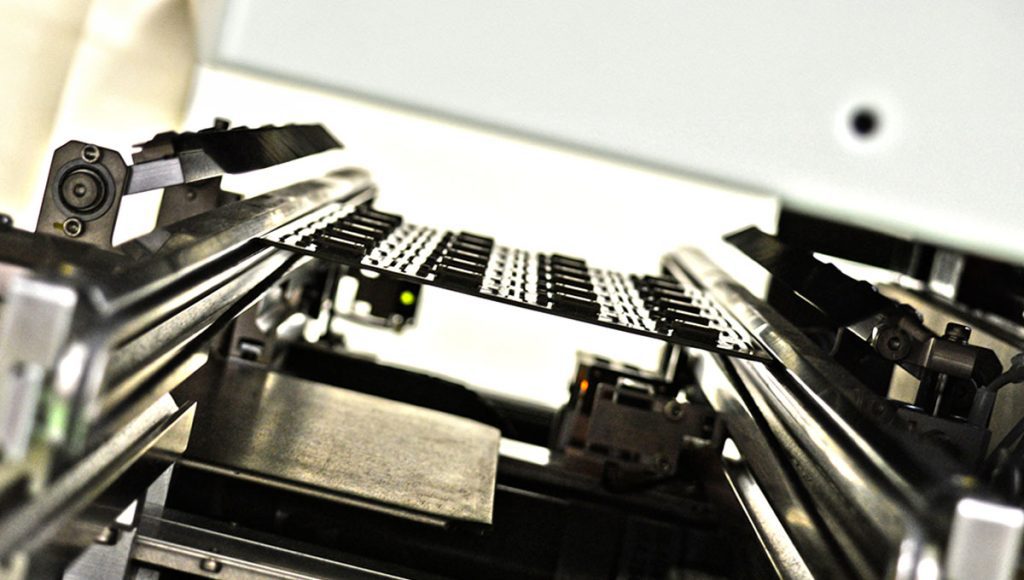

After receiving an order, the first step is to raise a sales order and complete our in-house checklist to ensure all provided documentation is correct. Our production engineering team then review all documentation to double check it is correct regarding details like issue numbers, part numbers and more. Once this is complete, our purchasing team begin procuring components. At Corintech, traceability is key and due to the systems we have in place, all components are traceable down to batch and board level. Once all components are at the production line, we send an acknowledged shipping date to the customer to meet the delivery time we quoted. Once assembled, all builds are inspected by our state-of-the-art 3D AOI Inspection system as well as being visually checked by our IPC-A-610 trained quality engineers. We are able to offer flexible supply options including Kanban supply to support your Lean Manufacturing system, and we have the capacity to hold stock of components and final assembly.

Our Customers

Our customer network is made up of a range of industries and business sizes that all value a high quality and reliable PCB assembly manufacturer. We work with many sectors including aerospace, medical, industrial, oil and gas, energy, automotive and more. In fact, the flexibility of our printed circuit board assembly services (including both small and large batch and fast turnaround options) means we’re able to cater to a vast range of customers.

Our Benefits

Corintech provides small batch or high volume production as well as full functional testing, quality assurance and global component sourcing options. With manufacturing facilities in the UK and Far East, we offer competitive pricing across all our PCB manufacturing services. Our continual investment in the latest technology including solder paste printing, pick-and-place and selective-soldering, means we can offer fast turnaround services and maintain short lead-times.

Our Quality Control Measures

Quality has always been of paramount importance at Corintech. We deliver all products in accordance with our ISO9001 accreditation. Our PCB assembly quality processes mean we are able to identify potential issues at the earliest opportunity through quality experts performing visual inspection and circuit testing as well as all builds passing through our state-of-the-art automated optical inspection machinery. All products at Corintech are manufactured to J-STD-001 workmanship standards and inspected in accordance with IPC-A-610 quality classifications.

PCB Layout Services

Alongside PCB assembly, our engineering team combines years of experience in the electronics industry with leading software to offer multi-layer PCB design and layout services.

Request a Quote

If you would like to receive a PCB assembly quote for your project, simply send us your Bill of Materials (BOM) and PCB data for a quote. You can do this by simply emailing info@corintech.com.
